AR-15 Extended Flat Top Rail
AR-15

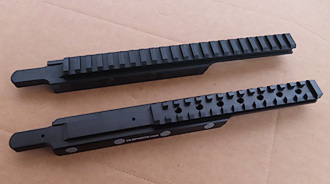

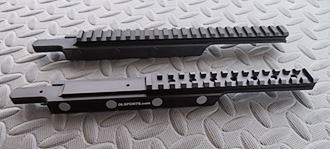

Two variations of the D&L extended flat top rail are now available: a full length cross slot version and a forward cross slot only version.The full length cross slot version allows shooters to mount a wide variety of optics, including compact red dot sights all the way to the rear of the rail and close to the shooter's eye.

The forward cross slot only version allows shooters to mount magnified rifle scopes with larger oculars (rear eye pieces) and still use low to medium height scope rings. This keeps the overall height of the entire rifle scope very low and allows the shooter to maintain a proper cheekweld on the stock. Keeping the scope low to the bore will also allow the shooter to keep a very efficient trajectory pattern down range.

The forward cross slot only version also has a series of 1/4 - 28 threaded holes in the centerline of the mount. These holes allow the shooter to square the flat on the underside of their rifle scope with the mount. Simply position and tighten the scope ring bottoms on the rail, set the scope in place, and lightly attach the scope ring tops. Then use a 1/4x28 bolt up from the bottom of the threaded hole in the mount which is lined up with the flat on the underside of the scope. Carefully slide a peice of flat stock between the scope flat and the 1/4-28 bolt, then square the scope with the flat stock and LIGHT 1/4-28 bolt tension. Snug the ring top screws. Remove the bolt and flat stock. Then tighten the ring top screws. (15-20 inch pounds is a common torque setting, but consult your optic's manual. Also use # 222 or #242 blue loctite on all scope ring threads).

At this point you can move your rail mounted scope from one flat top rifle to another flat top rifle thanks to the scope being already square with the mount, and the 4 crossbolts of the extended rail being capable of self squaring the rail onto each new flat top rifle. For shooters wanting the ultimate in rigidity and a more permanent mount, either of the above extended rails can also be drilled from the top to screw top down into your flat top reciever. Pilot holes are already in place in the forward cross slot only version of the rail.

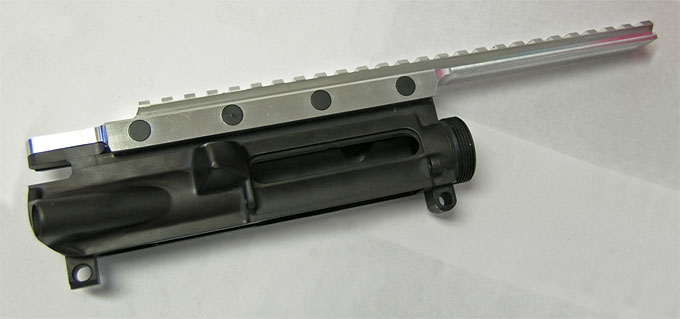

AR-15 extended length flat top scope mounting rail

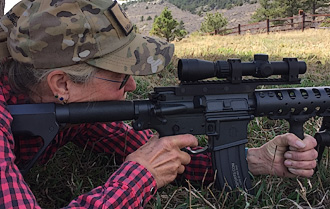

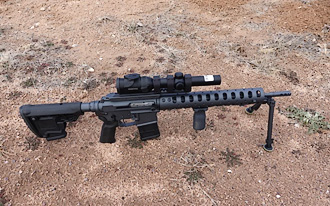

AR-15 1.5x-4x lightweight scope

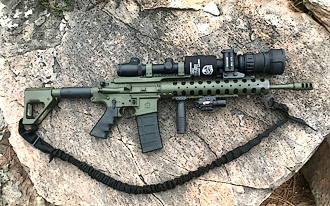

AR-15 Precision Rifle
There are many riser type rails on the market today, but most of them fail to address several critical features needed for properly mounting a precision optic on the rifle. Most importantly the rails fail to have enough forward overall length to mount a full size optic in a position to allow for the correct eye relief.

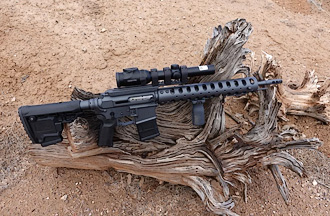

AR-15 Precision Rifle
The D&L extended rail has enough length to properly mount even the longest precision optic in the correct forward position to allow the shooter to achieve the proper eye relief when prone behind the rifle.
AR-15 Precision Rifle
AR-15 Precision Rifle

AR-15 extended length flat top scope mounting rail

Extended Flat Top Rail
AR-15 Precision Rifle
The D&L mount also features four full diameter heavy duty cross bolts to correctly secure the rail to the rifle's flat top. The bolts are recessed into the mount in order to be flush and non-snag.

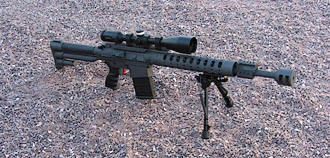

Precision AR-308
The overall mount features a 20 MOA slope to allow long range shooters to make maximum use of all the elevation inside their scope.

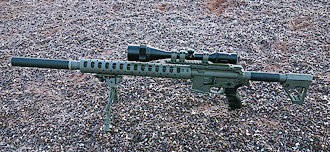

Custom AR-15
The OAL of this mount also allows custom gunsmiths to cut back to any exact length they may require for special project guns.
Black finish. Aluminum construction.
Prices available on request
